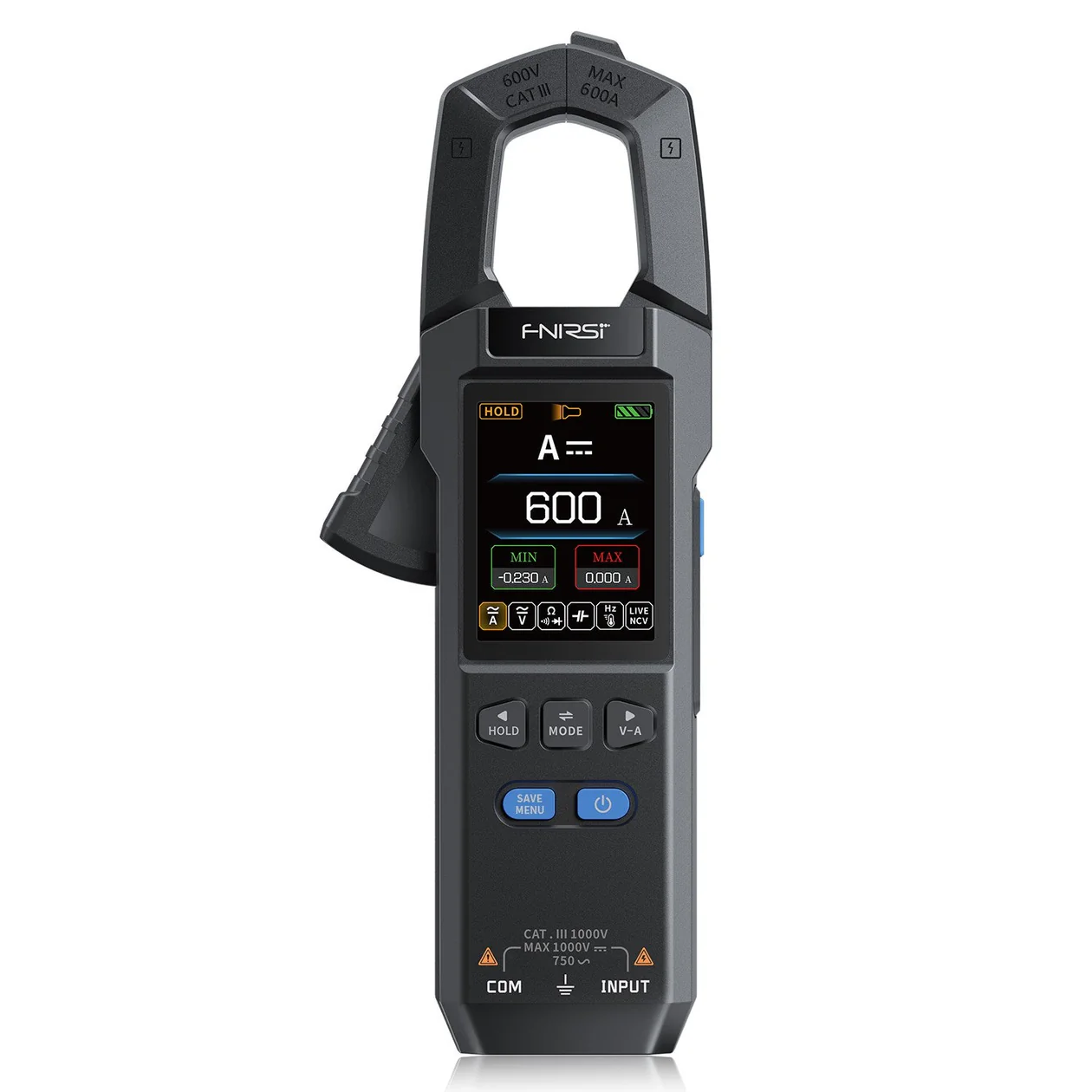

FNIRSI DMC-100 True RMS Digital Clamp Meter
The FNIRSI DMC-100 is a high-precision intelligent clamp meter designed for professional electrical measurements, diagnostics, and maintenance work. With support for up to 750V voltage and 600A current measurement, it delivers accurate readings for industrial, automotive, and home electrical applications.
Equipped with a 2.0-inch TFT full-color display and advanced waveform visualization, the DMC-100 provides clear and intuitive readings in real time. The device supports multiple measurement modes including standard measurement, waveform display, and power analysis.
Key Features
- 10,000-count True RMS precision
- AC/DC current measurement up to 600A
- AC voltage up to 750V
- 2.0-inch TFT color screen
- Waveform display and power analysis
- NCV non-contact voltage detection
- Temperature measurement from -55°C to 1300°C
- Rechargeable 1500mAh battery
- USB Type-C charging
- Data storage and recall
- Built-in flashlight and backlight
- Auto power-off and adjustable brightness
- Firmware upgrade support
Technical Specifications
- Model: DMC-100
- Display: 240×320 TFT Color Screen
- Battery: 3.7V 1500mAh Lithium
- Jaw Opening: 25mm
- Resistance Measurement: Up to 99.99MΩ
- Frequency Range: Up to 9.999MHz
- Capacitance Measurement Supported
- Diode and Continuity Testing
- Data Hold and Min/Max Functions
Ideal For
- Electricians
- Automotive technicians
- EV maintenance
- DIY electronics
- Home electrical troubleshooting
- Industrial diagnostics
- Laboratory testing
Package Includes
- FNIRSI DMC-100 Clamp Meter
- Type-C Charging Cable
- Test Leads
- Temperature Probe
- Storage Case
- User Manual
